TD100RR01 - Remote Reservoir Internal Spring Shocks 100mm

Hot Racing 100mm internal spring air damper shock set with piggyback reservoirs for rock crawlers or other custom projects

- Adjustable piggyback air reservoir with internal spring, adjustable preload, and internal piston
- Shock has air damping and minimal shock lubricant is need to only provide smooth shock action
- CNC machined aluminum shock bodies, black anodized
- CNC machined aluminum upper shock cap with o-ring seal, silver anodized
- CNC machined aluminum lower shock cap with shock shaft guide, black anodized
- Precision machined 7mm stainless steel shock shaft for durability
- Double o-ring lower shaft seal
- Air damping
- Internal springs with three rates included: Gold (soft), Black (medium), Silver (stiff)
- All aluminum is anodized for durability, corrosion resistance, and great looks

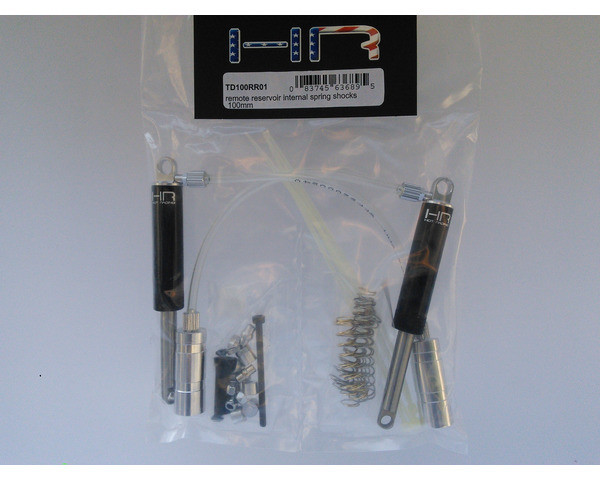

- Two (2) assembled piggyback shocks
- Two (2) gold (soft) main shock springs
- Two (2) black (medium) main shock springs
- Two (2) silver (stiff) main shock springs
- Two (2) gold (soft) reservoir springs
- Two (2) black (medium) reservoir springs
- Two (2) silver (stiff) reservoir springs
- Two (2) 4.8mm ball mounts
- Two (2) 5.8mm ball mounts
- Mounting hardware

- Installation on vehicle
- Recommended to use Team Associated Green Slime ASC1105 on lower o-ring seals to assist sealing and increase smoothness

- Extended center to center length: 100mm (3.9 inch)
- Compressed center to center length: 68mm (2.7 inch)
- Overall length: 108mm (4.3 inch)
- Body diameter: 13mm (0.5 inch)
- Shaft diameter: 7mm (0.3 inch)

- Variants available include: TD100RR01 (100mm), TD120RR01 (120mm)
- Replacement internal springs are Hot Racing RTD100P
- Replacement shock o-rings are Hot Racing RTD48RR
- Replacement reservoir o-rings are Hot Racing RCV14R
description revised by: SN December 19, 2016
