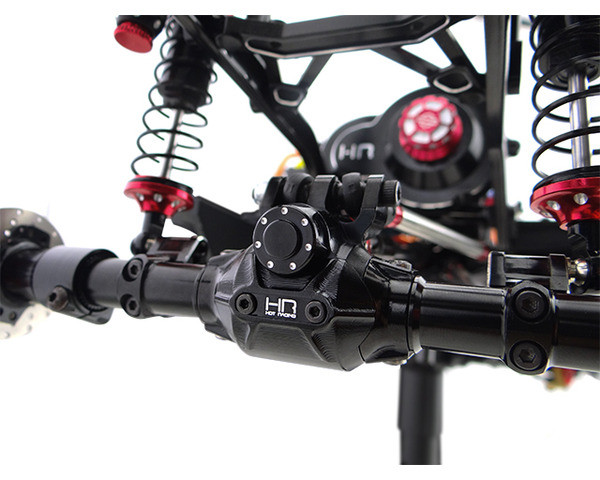

SCXT12WG - Billet Aluminum AR44 25:1 Worm Gear Crawler Axle Axial SCX10 II

Hot Racing's billet aluminum AR44 25:1 worm gear axle housing for Axial SCX10 II kit and RTR vehicles provides ultimate strength, a huge gear reduction, and improved ground clearance for unparalleled crawling capabilities.

- Black anodized CNC machined billet aluminum axle housing, tubes, differential cover, 4-link mount, and pumpkin
- 25:1 hardened steel worm gear set for ultimate torque
- Much improved ground clearance
- Locked differential
- Large gear reduction in a compact package
- Self-locking worm gears prevent the vehicle from unintentional rolling; the vehicle will hold itself on steep slopes without the aid of the motor
- Torque twist is minimized due to large gear reduction
- Integrated 4-link mount
- Full ball bearings
- Fits front and rear and requires no vehicle modification for use
- Replaces factory plastic axle case housing, diff cover and gears
- One (1) aluminum axle housing
- One (1) aluminum differential cover
- One (1) worm gear set
- Three (3) 5x11x4mm ball bearings
- Two (2) 7x14x3.5mm carrier ball bearing
- Ratio: 25:1
- Weight: 88g as packaged with gears
- Length tube end-to-end: 131.5mm
- Tube center to bottom of pumpkin: 12mm
- Installation
- Parts from original axle, from the axle shafts out
- Two required per vehicle. If only one is used, a severe mismatch in front/rear gearing will result.
- Medium threadlock (blue threadlocking compound) on screws (screws may not have threadlock from the factory)
- Compatible with both the Axial SCX10 II kit and RTR
- Replaces Axial factory components: axle housing (AX31401), diff cover (AX31384), ring and pinion (AX31405), and locker (AX31404)


description revised by: SN July 24, 2017
