NRO288V02 - Cv Splined Drive Shaft Nero 4wd

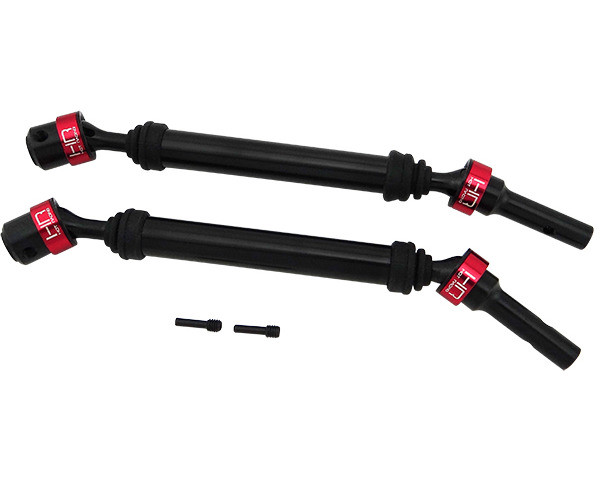

Hot Racing heavy duty splined star drive CVD axle kit for the front or rear of the 1/8 Arrma Big Rock BLX, Fazon BLX, or Nero BLX

- CNC machined #45 hardened carbon steel CVs, drive hub, male slider spline, and stub axle
- CNC machined aluminum slider tube
- Red anodized aluminum pin capture rings with rubber o-rings to prevent movement
- Rubber dust cover boots
- Replaces factory front or rear driveshaft axles
- Two (2) splined axle assemblies
- Two (2) M4x2.5x13.5mm screw pins
- Installation to the drive assembly
- Need to reuse the stock Drive pin and set screw
- Recommended to maintain CV joint and shaft spline with grease
- Recommended to medium thread lock on screws threading into metal - Collapsed length, overall: 164mm
- Extended length, overall resulting in zero shaft engagement: 217mm
- Collapsed length, wheel pin to outdrive pin: 147mm
- Extended length, wheel pin to outdrive pin resulting in zero shaft engagement: 200mm
- Rebuild kit is Hot Racing RNRO288V02
- See Hot Racing NRO288E02 for a lighter-weight axle option


description revised by: SN March 29, 2017
